Accessories for Temperature Sensors
Terminal blocks

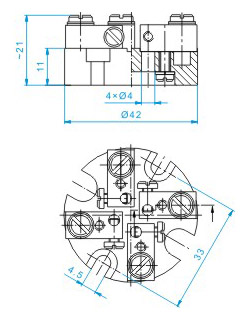

B1S-HS1, Terminal block


Technical data

Assembly place: Connection heads type "B" with 33 mm spacing of holes to screw
Assembly :
 Screwed directly into connection head with M4 screws
Material : Steatite C220 according to IEC 60672-3
Wire clamps material : Nickel-plated brass
Max number of wire clamps : 4
Max wire diameter : Ø3 mm



B1S-HS1 terminal blocks is made off of steatite. Mainly used to connect thermocouple with external devices. Wire clamps are adapted to wire diameter Ø2÷Ø3 mm. Those terminal blocks are installed in connection head B type. B1S-HS1 terminal block can be equipped with 2 or 4 wire clamps.
