Accessories for Temperature Sensors
Terminal blocks

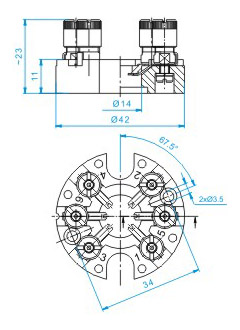

B10S-G4/B10S-G4Lr, Terminal block


Technical data

Assembly place : Connection heads type "B" with 33 mm spacing of holes to screw
Assembly : Riveted with Ø3 mm diameter rivets to stainless steel terminal block pad
Material : Steatite C220 according to IEC 60672-3
Wire clamps material : Nickel-plated brass
Max number of wire clamps : 6
Max wire diameter : Ø1.2 mm



B10S-G4 / B10S-G4Lr terminal blocks is made off of steatite. Mainly used to connect resistance thermometer or thermocouple with external devices. Wire clamps are available with extra soldering pads. Those terminal blocks are installed in connection head B type. B10S-G4 / B10S-G4Lr terminal blocks can be equipped with 2, 3, 4 or 6 wire clamps.
