Accessories for Temperature Sensors
Terminal blocks

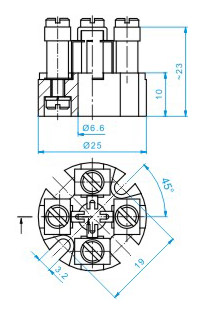

M5S-VS3L, Terminal block


Technical data

Assembly place : Connection heads type "M" with 20 mm spacing of holes to screw
Assembly : Screwed directly into connection head with M3 screws
Material : Steatite C220 according to 60672-3
Wire clamps material : Nickel-plated brass
Max number of wire clamps : 4
Max wire diameter : Ø1 mm



M5S-VS3L terminal block is made of steatite. Mainly used to connect resistance thermometer or thermocouple with external devices. Wire clamps are adapted to wire diameter<Ø1 mm. Those terminal blocks are installed in connection head M type. M5S-VS3L terminal blocks can be equipped with 2, 3 or 4 wire clamps.
