Accessories for Temperature Sensors
Thermowells




UG1, UG4, Compression fittings


Features

  • Standard lengths: 80 mm, 145 mm, 165 mm, 250 mm
  • Process connection: metric, inch, conical NPT
  • Other versions available upon request

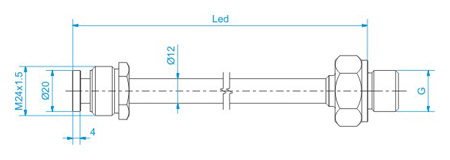

Neck extension EDO is a part between outer thermowell and connection head of sensor. The neck protects against influence of process temperature to connection head and temperature transmitter installed inside the head. Standard lengths are 80 mm, 145 mm, 165 mm and 250 mm. Other lengths may be available upon request. Moveable screw provides rotation of the connection head.

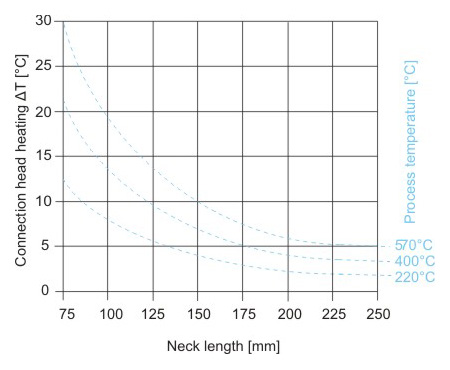

Heating of the terminal head consequent to the process temperature. As illustrated in the following figure, the neck tube length may influence the temperature in the connection head. It is necessary that this temperature is kept within the limit values defined in transmitter and connection head operating conditions.


Temperature in terminal head = ambient temperature 20°C + ΔT
