Accessories for Temperature Sensors
Compression fittings and mounting brackets




UG1, UG4, Compression fittings


Application

  • * Easy installation of temperature sensors in measuring point


Features

  • * High quality
  • * Metric, cylinder and NPT threads
  • * Production according to customer's requirement also possible


Description

TERMOAPARATURA WROCŁAW supplies high quality compression fittings suitable for installation of temperature sensors in measuring point.

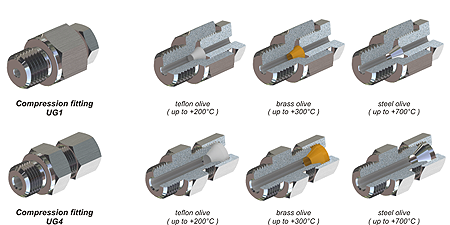

Compression fittings consists of three parts: body with process thread (metric or NPT), olive and compression screw/nut. Body and compression screw/nut are made of stainless steel. Olive made of stainless steel is forceful and resist up to 700ºC at typical pressure.

Standard versions of the compression fittings provides gas-tight connection up to 10 MPa (100 bar) with steel olives

Sealing olives
