Connectors for Temperature Sensors
Others




M12 Hirschmann, 4-pin plug, straight circular housing

Connector M12 Hirschmann 4-pin plug is designed for RTD sensors. Threaded connection with socket prevents of accidental disconnection of connectors and it is rated of IP67 protection class according to IEC 60529 standard.

Features

  • * High-quality polyamide housing resistant up to +90°C (M12 Hirschmann)
  • * Threaded connection with Hirschmann M12 plug
  • * Designed for self assembly
  • * Solid construction
  • * Cable accommodation diameter: Ø4 - Ø6 mm
  • * Cable gland thread: PG7
  • * IP67 degree of protection class (according to IEC 60529)
  • * 4-pin socket made out of brass
  • * Straight circular housing

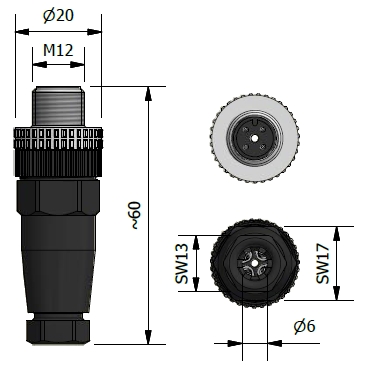

Dimensions
Documents
