Connectors for Temperature Sensors
Others




GDM Hirschmann, Connector

Connector GDM Hirschmann 4-contact socket is designed for RTD sensors. Threaded connection with plug prevents of accidental disconnection of connectors and it is rated of IP65 protection class according to IEC 60529 standard.

Features

  • * High-quality polyamide housing resistant up to +120°C (GDM Hirschmann)
  • * Threaded connection with Hirschmann plug GSA, GSC and GSP
  • * Designed for self assembly
  • * Solid construction
  • * Cable accommodation diameter: Ø4.5 - Ø7 mm
  • * Cable gland thread: PG9
  • * IP65 degree of protection class (according to IEC 60529)
  • * 4-contact tinned socket
  • * Angled housing

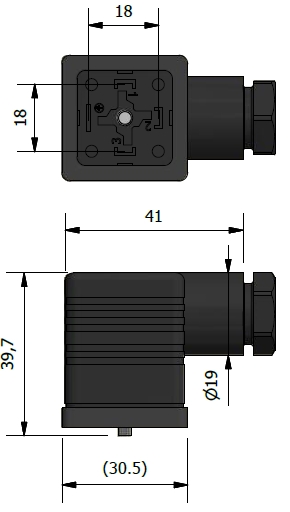

Dimensions
Documents
