Connectors for Temperature Sensors
Panels




FCP, Miniature socket panel for multi-connectors

Miniature socket panel FCP for F-27 multi-connectors is used mainly in laboratories, etc.

Features

  • * Designed for self assembly
  • * Designed for F-27 miniature socket panel assembly
  • * Panel made of anodized aluminum
  • * High-quality housing resistant up to +220°C
  • * Wires diameter up to Ø0.6 mm


Equipment

  • * Panel must be equipped with F-27 miniature socket panels separetely

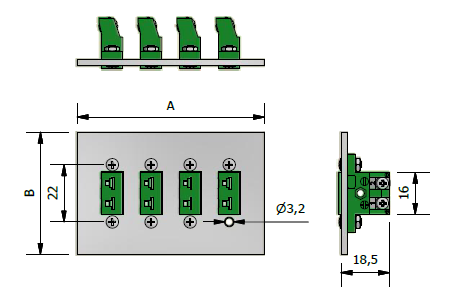

Dimensions



Quantity of slots Quantity of rows Dimensions ( A x B ) in milimeters
1 1 23.5 x 47
2 1 40 x 47
4 1 72 x 47
6 1 104 x 47
8 1 136 x 47
10 1 168 x 47
12 1 200 x 47
