Connectors for Temperature Sensors
Panels




FCT, Miniature socket panel for multi-connectors

Miniature socket panel FCT for F-31 multi-connectors is used mainly in laboratories, etc.

Features

  • * Designed for self assembly
  • * Designed for F-31 miniature socket panel assembly
  • * Panel made of anodized aluminum
  • * High-quality housing resistant up to +220°C
  • * Wires diameter up to Ø0.6 mm
  • * Connection cable diameter up to Ø4.5 mm


Equipment

  • * Panel must be equipped with F-31 miniature socket panels separetely

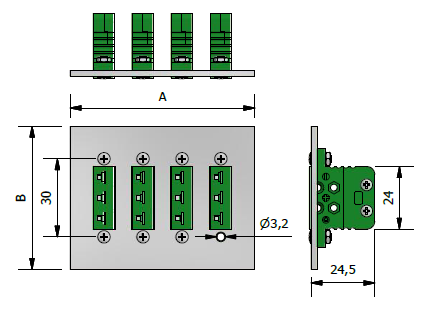

Dimensions



Quantity of slots Quantity of rows Dimensions ( A x B ) in milimeters
2 1 39 x 55
4 1 71 x 55
6 1 103 x 55
12 1 199 x 55
