Connectors for Temperature Sensors
Panels




RCP, Standard socket panel for multi-connectors

Standard socket panel RCP for R-27 multi-connectors is used mainly in laboratories, etc.

Features

  • * Designed for self assembly
  • * Designed for R-27 standard socket panel assembly
  • * Panel made of anodized aluminum
  • * High-quality housing resistant up to +220°C
  • * Wires diameter up to Ø2.0 mm


Equipment

  • * Panel must be equipped with R-27 standard socket panels separetely

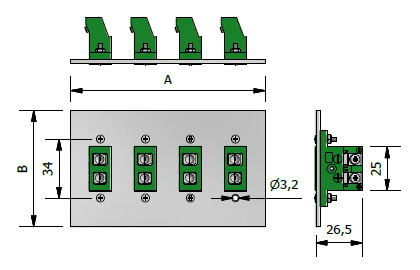

Dimensions



Quantity of slots Quantity of rows Dimensions ( A x B ) in milimeters
1 1 37 x 67
2 1 62 x 67
4 1 112 x 67
6 1 162 x 67
8 1 212 x 67
10 1 262 x 67
12 1 312 x 67
