Connectors for Temperature Sensors
Panel inserts




R-32, Standard socket panel

Miniature socket panel R-32 is designed for self assembly in special prepared holes. R-32 panel is mainly used in laboratories, etc.

Features

  • * Solid construction
  • * Easy connection of wires
  • * High-quality housing resistant up to +220ºC
  • * Wires diameter up to Ø2.0 mm
  • * Connection cable diameter up to Ø8.0 mm
  • * Designed for assembly in drilled hole
  • * Suggested drilled hole diameter: Ø28.5 mm

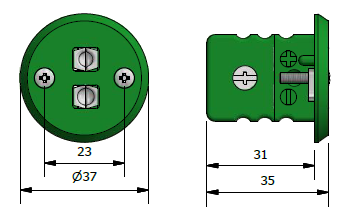

Dimensions
Documents
