Connectors for Temperature Sensors
Standard connectors




S-023, 3-pin standard connector

Standard S-023 connectors with round pins are designed for thermocouples and RTD sensors. Solid construction provides reliable connection even in demanding applications.

Third Cu pin is used as grounding, extension of sensor shielding or connection of 3-wire Pt100 RTD sensor.

Features

  • * High-quality housing resistant up to +220°C
  • * Easy connection of wires
  • * Solid construction
  • * Max cable diameter up to: Ø8 mm
  • * Wires diameter from Ø0.2 mm up to Ø2 mm

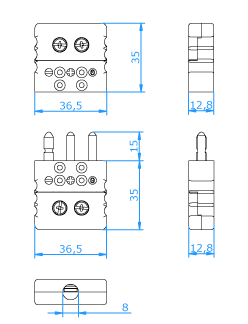

Dimensions
Documents
