I M1 Ex ia I Ma II 1/2G Ex ia IIC T6÷T4 Ga/Gb II 1/2D Ex ia IIIC T75÷150°C Da/Db (without transmitter) II 1/2D Ex ia IIIC T85÷150°C Da/Db (with transmitter)
EAC Ex Designation:
PO Ex ia I Ma X 0Ex ia IIC T..Ga X 0Ex ia IIIC T..Da X
Certificate:
FTZU 08 ATEX 0153X
RU C-PL.MЮ62.B.04104
Application
* Design temperature range: -200 .. +550°C
* Particularly suitable for steam and gas applications with high process pressures and temperatures
* Installation in hazardous areas: Gases, vapors, mists (G): Zone 0, 1, 2 Dusts (D): Zone 20, 21, 22 Mines: M1
Features
* Single and double RTD
* Exchangeable mineral insulated measuring insert
* Solid machined (drilled) thermowell suitable for high pressures
* Thermowell diameters: Ø18h7, Ø24h7
* Thermowell material: steel 1.7335 or other
* Cable gland ATEX I M1, II GD, IP65 (cable diameter Ø5..10mm)
* Output signal: RTD or 4..20 mA (option)
Description
The sensor consists of an exchangeable measuring insert, drilled thermowell, neck and aluminum connection head where mounting a temperature transmitter with 4-20 mA/HART® or Profibus®PA output signal is possible.
The measuring insert represents the replaceable element of the complete sensor which reduces time and costs of maintenance of the measuring apparatus installed in the object. Spring fixation of the measuring insert provides perfect pressure to the bottom of the protecting tube, reduces time of reaction to changes of temperature and increases accuracy of measurement as well as reduces natural vibration thus mechanical and electrical defects can be avoided.
Insertion length, design of thermowell, connection head as well as type and number of sensors, accuracy and method of connection can be selected individually for the respective application.
Temperature transmitter ( Option )

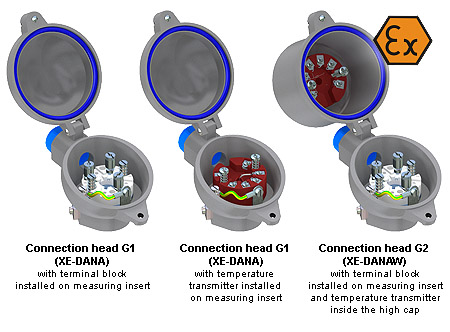

Transmitter is mounted inside the connection head of the sensor: directly on measuring inset or in the high cap of head.
The second method is advantageous as it allows changing standard measuring inset quickly without a need to disassemble the transmitter; it means reduction of time and costs of maintenance of the sensor and protecting wires against any damage possible. Mounting of two transmitters inside the connection head available upon request
