Sensors for measuring bearings temperature




TOPE550, Cable resistance thermometer



Applications

  • * Measuring range: -50 .. +400°C (depends on cable insulation)
  • * Machinery industry
  • * Light energy industry
  • * General industrial services


Features

  • * Single or double RTD:
        Pt100, Pt500, Pt1000 according to PN-EN 60751
        Ni100, Ni1000 according to DIN 43760
        Cu50, Cu53 according to GOST 6651-94
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Threaded process connection


Temperature range

Temperature range of the sensor depends on insulation of connection cable.
Temperature range Possible diameters of protection tube Cable insulation
-10 .. +105°C Ø5, Ø6, Ø8 mm PVC
-50 .. +180°C Ø5, Ø6, Ø8 mm silicone
-50 .. +260°C Ø3, Ø4, Ø5, Ø6, Ø8 mm teflon® PFA
-50 .. +400°C Ø5, Ø6, Ø8 mm fiberglass

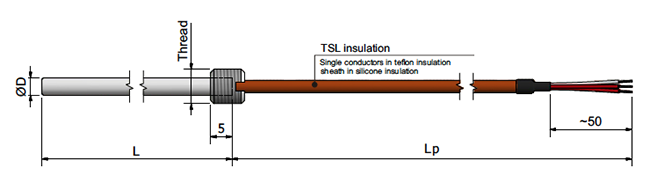

Construction

Resistance thermometers TOPE550 are designed for screw-fitting directly into into machine parts or bearings. Sensor can be applied in hard to reach places where small size of thermowell is required.


The sensor consists of thermometric resistor, protection tube, moveable threaded process connection and cable.



Insertion length, process connection, construction type, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, IECEx, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

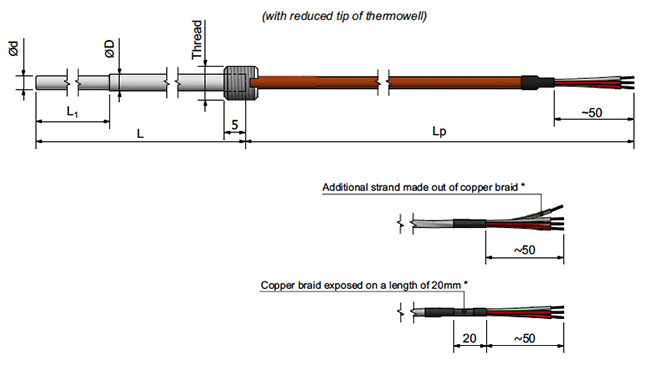

Other versions



This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
