Thermocouples (TCs)
Mineral insulated thermocouples




TTP-TKbWL, Mineral insulated thermocouple


Application

  • * Measuring range: -40 .. +1250°C
  • * Heat treating
  • * Furnaces
  • * Gas and steam turbines
  • * Bearing temperature
  • * Diesiel engines
  • * Jet engines
  • * Rafineries/Oil processing
  • * Food processing


Features

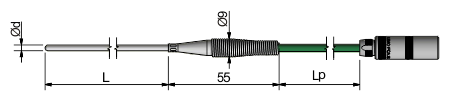

  • * Temperature sensor TTP-TKbWL with compensation cable and LEMO® connector
  • * Made of flexible mineral insulated cable
  • * Sheath material: stainless steel or Ni-alloy
  • * Small diameters from Ø0.25 mm
  • * Quick response time
  • * Bending of sensor possible
  • * Vibration resistant


Multiplicity

Possible combinations:
TC Sheath diameter d [mm]
Ø0.25 Ø0.5 Ø1.0 Ø1.5 Ø2.0 Ø3.0 Ø4.5 Ø6.0 Ø6.4 Ø8.0
1 x TC
(single)

*

2 x TC
(double)

*

3 x TC
(triple)

*Option, available upon request.

Description

Mineral insulated thermocouples, also referred to as sheathed thermocouples, are made of metal sheathed cable with internal thermocouple wires are insulated from each other and from the outer sheath with magnesium oxide (MgO) powder. This provides the sensor with high vibration resistance, flexibility as well as resistance to temperature and with good electrical insulation.

These sensors are designed for direct temperature measuring in places with difficult access, as well as in all places, where it is required to use flexible sensors of small diameters, high resistance to vibrations and shock, and with short response time to temperature changes.

Due to tight pressing of the insulating layer (MgO) and appropriate structure of the inner wires and the sheath, the sensors can be bent with a minimal radius of curvature of three times the outer diameter of the sheath.

Thermocouple with reduced tip diameter



There is available option for thermocouple with reduced tip diameter, for more information

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, IECEx, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).
