Thermocouples (TCs)
Sensors with handle




TTE424, Cable thermocouple



Applications

  • * Temperature measurement of liquids, gases and solid bodies.
  • * Laboratories, warehouses
  • * Quality control


Features

  • * Single or double TC:
       Type J (Fe-CuNi),
       Type K (NiCr-NiAl),
       Type N (NiCrSi-NiSi),
       Type T (Cu-CuNi),
       Type E (NiCr-CuNi)
  • * Comfortable handgrip to handle
  • * Twisted or straight cable version


Temperature range

-40 .. +1150°C (depends on thermocouple type and sheath material)

Description

Resistance thermometers TOPE424 are designed for temporary measurement and mobility. Recommended for laboratory application to dryblock temperature calibrators.

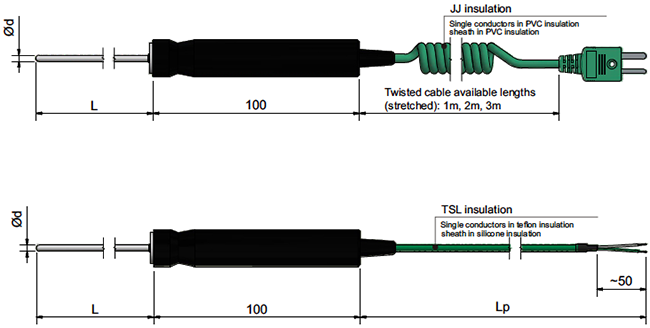

TTE424 consists of sheathed thermocouple cable mineral insulated inside, handgrip and twisted or straight connection cable version.

Available lenght of stretched twisted cable:
  • * 1m
  • * 2m
  • * 3m

Length L, thermocouple type, accuracy, cable insulation and method of connection can be selected individually for the respective application

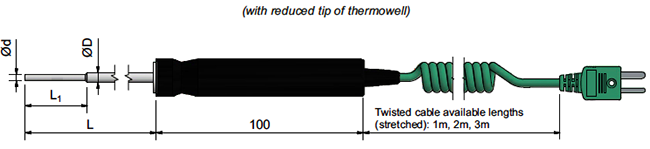

Other versions


This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
