Thermocouples (TCs)
Sensors with handle




TTE450, Cable thermocouple


Applications

  • * Measuring range: -50 .. + 500°C
  • * Temperature measurement of blocks, parts of machinery or other construction elements
  • * Laboratories, warehouses
  • * Quality control


Features

  • * Single TC:
  • * Comfortable handgrip to handle
  • * Twisted cable
  • * Sensing element according to PN-EN 60584:
  • * Typ K (NiCr-NiAl)


Temperature range

Temperature range: -50 .. +500°C

Description

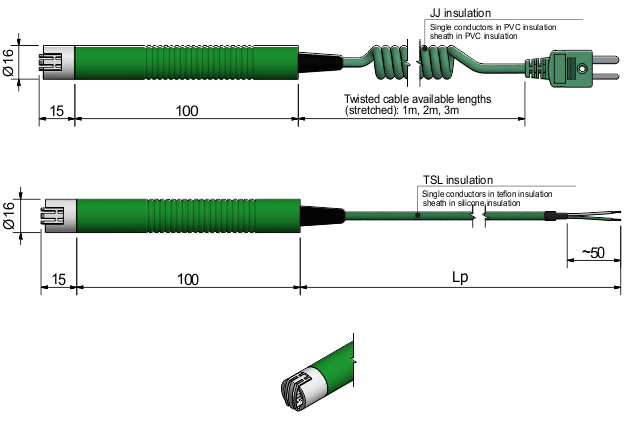

Thermocouples TTE450 are designed for temporary measurement and mobility. Recommended for laboratory application. TTE450 consists of elastic measurement tip, handgrip and twisted or straight connection cable version. Cable length and insulation can be selected individually for the respective application..


Other versions

This data sheet contains only small part of our supplies program of thermocouple cables. Upon the customer's request, other versions can also be delivered.
