Thermocouples (TCs)
Sensors with handle




TTE452, Cable thermocouple



Applications

  • * Temperature measurement of blocks, parts of machinery or other construction elements
  • * Laboratories, warehouses
  • * Quality control


Features

  • * Single TC
  • * Comfortable handgrip to handle
  • * Twisted cable
  • * Tapered measurement tip for easier use
  • * Sensing element according to PN-EN 60584 : Typ K (NiCr-NiAl)


Temperature range

  • * Temperature range: -50 .. +800°C


Description

Thermocouples TTE452 are designed for temporary measurement and mobility. Recommended for laboratory application.

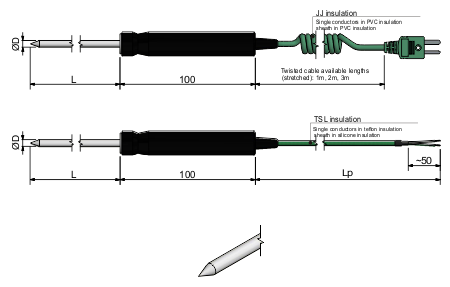

TTE452 consists of tapered measurement tip, protection tube made out of stainless steel, handgrip and twisted or straight connection cable version

Length and diameter of protection tube, cable length and insulation can be selected individually for the respective application.

Other versions

This data sheet contains only small part of our supplies program of thermocouple cables. Upon the customer's request, other versions can also be delivered.
