Thermocouples (TCs)
Sensors with handle




TTE453, Cable thermocouple


Applications

  • * STemperature measurement of gases
  • * SLaboratories, warehouses
  • * SQuality control


Features

  • * Single TC
  • * Comfortable handgrip to handle
  • * Twisted cable
  • * Perforated measurement tip for quick time respond of temperature measurement
  • * Sensing element according to PN-EN 60584:
  • * Typ K (NiCr-NiAl)


Temperature range

  • * Temperature range: -50 .. +800°C


Description

Thermocouples TTE453 are designed for temporary measurement and mobility. Recommended for laboratory application.

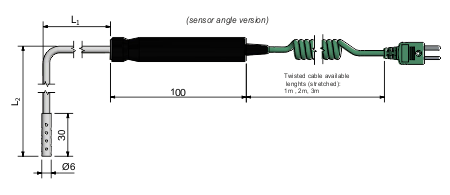

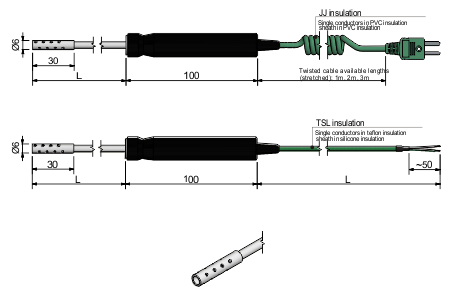

TTE453 consists of perforated tip, protection tube made out of stainless steel, handgrip and twisted or straight connection cable version.

Protection tube length, cable length and insulation can be selected individually for the respective application.

Other versions

This data sheet contains only small part of our supplies program of thermocouple cables. Upon the customer's request, other versions can also be delivered.
