Thermocouples (TCs)
Sensors with thermocouple cable




Cable thermocouple



Applications

  • * Laboratories
  • * Machinery industry
  • * General industrial services


Features

  • * Single TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)
  • * For sticking with self-adhesive tape


Measuring range

  • * -40 .. +180°C

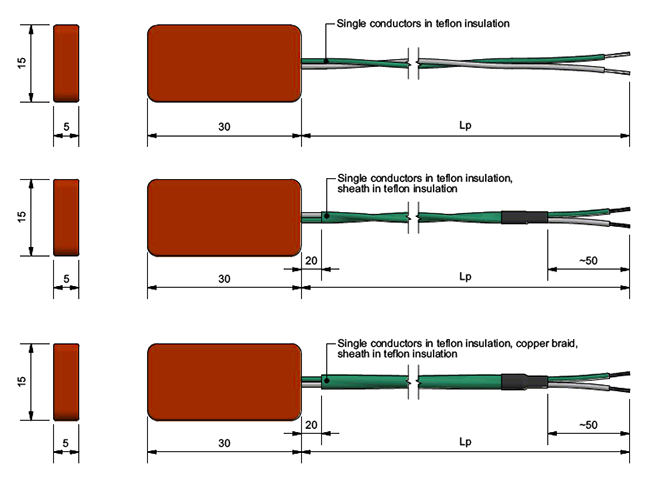

Construction

The sensor consists of silicone case, self-advesive tape and thermocouple wire.

Length, accuracy, cable insulation and method of connection can be selected individually for the respective application.

Temperature transmitter (Option)

There is possibility of using standard temperature transmitter (4÷20mA, 0÷10V) or temperature transmitter with HART®, Profibus® PA, Foundation Fieldbus communication protocol, mounted inside electrical control cabinet.

Other versions

This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
