Thermocouples (TCs)
Sensors with thermocouple cable




TTE570, Cable thermocouple


Applications

  • * Measuring range: -50 .. +400°C (depends on cable insulation)
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry


Features

  • * Single or double TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Mounting flange with two Ø3.7 mm holes


Temperature range

Temperature range of the sensor depends on insulation of connection cable.
Temperature range Possible diameters of protection tube Cable insulation
-10 .. +105°C Ø5, Ø6, Ø8 mm PVC
-50 .. +180°C Ø4, Ø5, Ø6, Ø8 mm silicone
-50 .. +260°C Ø3, Ø4, Ø5, Ø6, Ø8 mm teflon® PFA
-50 .. +400°C Ø5, Ø6, Ø8 mm fiberglass


Construction

Resistance thermometers TTE570 are designed for selftapping screw assembly to air ducts and air conditioning systems.

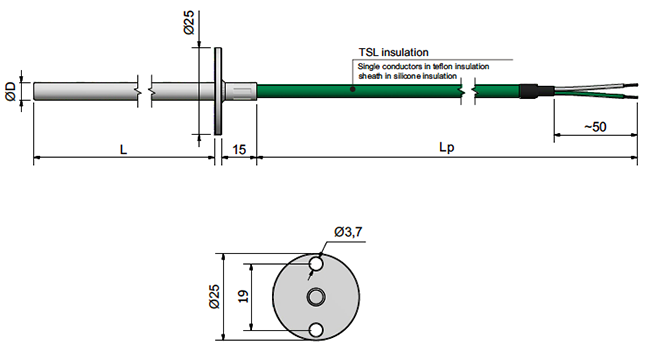

The sensor consists of thermocouple cable, protection tube made out of stainless steel and mounting flange welded to thermowell.

Insertion length, construction type, thermocouple type, accuracy and cable insulation can be selected individually for the respective application.

AATEX, IECEx, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe and Flameproof designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ and „flameproof” type of protection according to Directive 2014/34/UE (ATEX) and EAC Ex TR-CU 012/2011 (Eurasian Economic Union)..

Other versions

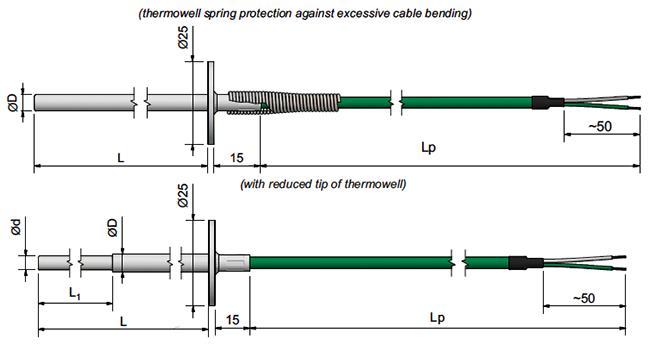

This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
