Thermocouples (TCs)
Sensors with thermocouple cable




TTE50244S, Cable thermocouple


Applications

  • * Measuring range: -40 .. +400°C (depends on cable insulation)
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry


Features

  • * Single or double TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Worm drive hose made of stainless steel


Temperature range

Temperature range of the sensor depends on insulation of connection cable.
Temperature range Cable insulation
-10 .. +105°C PVC
-40 .. +180°C silicone
-40 .. +260°C teflon® PFA
-40 .. +400°C fiberglass


Description

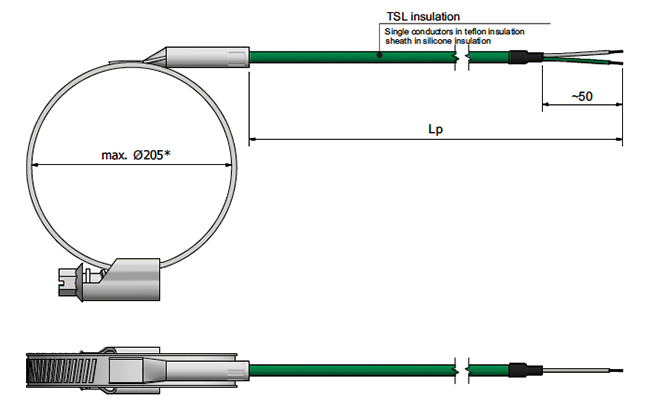

Thermocouples TTE50244P are designed for assembling directly onto pipelines or other cylindrical elements. Worm drive hose allows to mount sensor on pipeline. Sensors designed for pipeline diameter greater than Ø100 mm are equipped with two or more hose-clips.

The sensor consists of thermocouple cable, protection tube made out of stainless steel and worm drive hose.

Thermocouple type, accuracy, cable insulation can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versionsCertyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

Other versions



This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
