Thermocouples (TCs)
Sensors with thermocouple cable




TTE3, TTE4, Cable thermocouple



Applications

    • * suring range: -50 .. +400°C (depends on cable insulation)
    • * Fine chemical industry
    • * Light energy industry
    • * General industrial services



    Features

    • * Single or double TC:
      Type J (Fe-CuNi),
      Type K (NiCr-NiAl),
      Type N (NiCrSi-NiSi),
      Type T (Cu-CuNi),
      Type E (NiCr-CuNi)
    • * Version with additional thermowell (TTE3) or bayonet adaptor (TTE4)


    Temperature range

    • * Temperature range of the sensor depends on insulation of connection cable.
    Temperature range Possible diameters of protection tube Cable insulation
    -10 .. +105°C Ø6, Ø8 mm PVC
    -40 .. +180°C Ø6, Ø8 mm silicone
    -40 .. +260°C Ø5, Ø6, Ø8 mm teflon® PFA
    -40 .. +400°C Ø6, Ø8 mm fiberglass


    Description

    Thermocouples TTE3, TTE4 are designed for screw-fitting directly into process or into machine parts. Adjustable spring force of sensor provides optimum measurement conditions in environment where vibrations and turbulences appears. Additional external thermowell of TTE3 version allows for easy sensor disassembly without unsealing process installation. These thermocouples are suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.

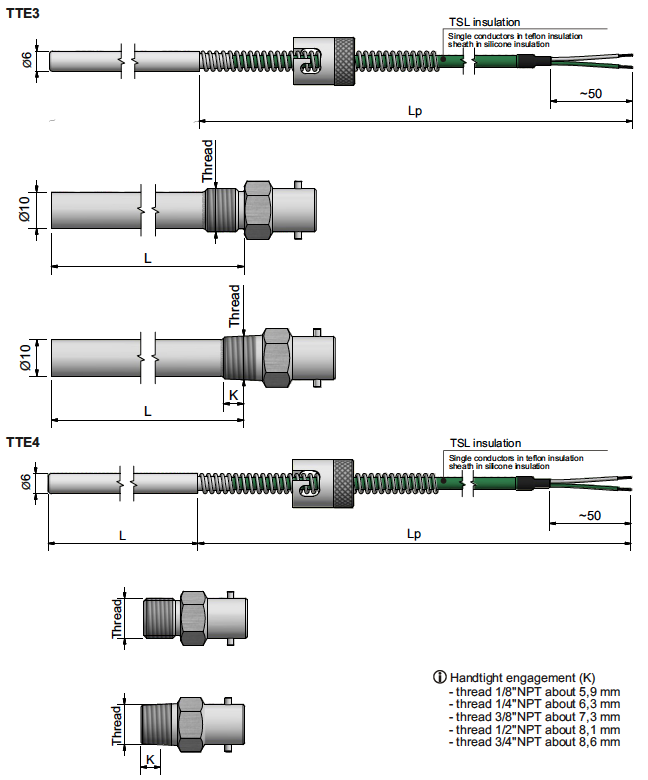

    TTE3 sensor consists of thermocouple cable, protection tube made out of stainless steel, adjustable bayonet cap with spring and additional external thermowell with threaded process connection. TTE4 sensor is provided with bayonet adaptor, without additional external thermowell. .

    Insertion length, process connection, construction type, thermocouple type, accuracy, cable insulation and method of connection can be selected individually for the respective application.

    Other versions

    This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
