Thermocouples (TCs)
Sensors with thermocouple cable




TTE310, TTE311, TTE312, Cable thermocouple



Applications

    • * suring range: -40 .. +400°C (depends on cable insulation)
    • * Plastic industry
    • * Light energy industry
    • * General industrial services



    Features

    • * Single or double TC:
      Type J (Fe-CuNi),
      Type K (NiCr-NiAl),
      Type N (NiCrSi-NiSi),
      Type T (Cu-CuNi),
      Type E (NiCr-CuNi)
    • * Stainless Steel AISI321 / 1.4541
    • * Version with protection tube diameter Ø5 mm (TTE310), Ø6 mm (TTE311), Ø8 mm (TTE312)


    Temperature range

    • * Temperature range of the sensor depends on insulation of connection cable.
    Temperature range Possible diameters of protection tube Cable insulation
    -10 .. +105°C Ø6, Ø8 mm PVC
    -40 .. +180°C Ø6, Ø8 mm silicone
    -40 .. +260°C Ø5, Ø6, Ø8 mm teflon® PFA
    -40 .. +400°C Ø5, Ø6, Ø8 mm fiberglass


    Description

    Thermocouples TTE310, TTE311, TTE312 are designed for screw-fitting directly into machine body or parts. Adjustable spring force of sensor provides optimum measurement conditions in environment where vibrations appears. .


    Construction

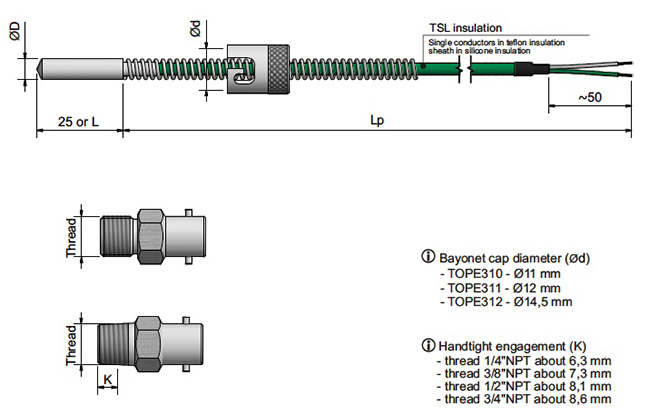

    The sensor consists of thermocouple cable, protection tube, spring and bayonet cap.

    Insertion length, process connection, construction type, thermocouple type, accuracy, cable insulation can be selected individually for the respective application.

    ATEX, IECEx, EAC Ex versionsCertyfikaty ATEX, EAC Ex

    Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

    Other versions

    This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
