Thermocouples (TCs)
Sensors with thermocouple cable




TTE416, Cable thermocouple


Applications

  • * Measuring range: -40 .. +400°C (depends on cable insulation)
  • * Light energy industry
  • * General industrial services
  • * Food industry


Features

  • * Single or double TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Standard hole diameters Ø4.2 and Ø6.2 mm


Temperature range

  • * Temperature range of the sensor depends on insulation of connection cable.
Temperature range Cable insulation
-10 .. +105°C PVC
-40 .. +180°C silicone
-40 .. +260°C teflon® PFA
-40 .. +400°C fiberglass

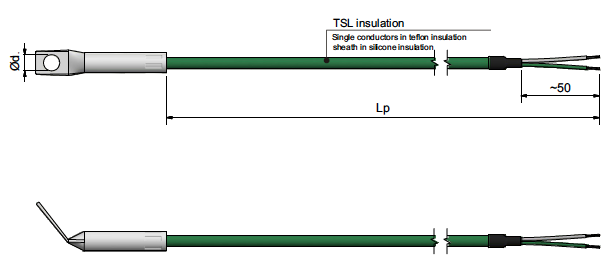

Construction

Thermocouples TTE416 are designed for assembling directly onto machine parts or other construction elements. Assembly screw hole in thermwell allows to mount sensor with standard fasteners e.g. bolts and rivets.

The sensor consists of thermocouple cable and protection tube with hole for fixing.

Diameter of hole, thermocouple type, accuracy, cable insulation can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

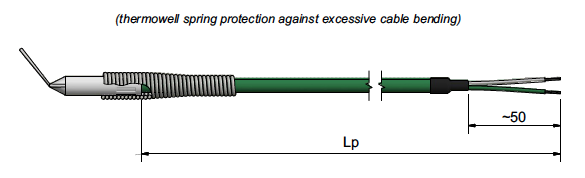

Other versions

This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
