Thermocouples (TCs)
Sensors with thermocouple cable




TTE418, TTE419, Cable thermocouple



Applications

  • * Measuring range: -40 .. +400°C (depends on cable insulation)
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry


Features

  • * Single or double TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Threaded process connection
  • * Construction type: straight or angle


Temperature range

  • * Temperature range of the sensor depends on insulation of connection cable.
Temperature range Possible diameters of protection tube Cable insulation
-10 .. +105°C Ø5, Ø6, Ø8 mm PVC
-40 .. +180°C Ø4, Ø5, Ø6, Ø8 mm silicone
-40 .. +260°C Ø3, Ø4, Ø5, Ø6, Ø8 mm teflon® PFA
-40 .. +400°C Ø5, Ø6, Ø8 mm fiberglass


Construction

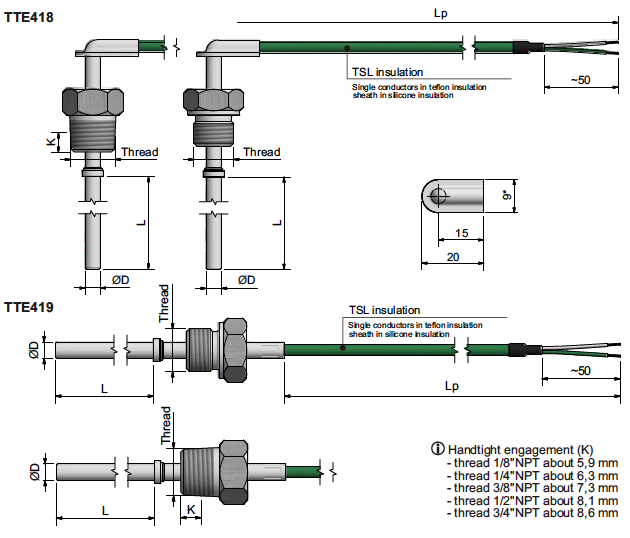

The sensor consists of thermocouple cable, protection tube with moveable threaded process connection.

Insertion length, process connection, construction type, thermocouple type, accuracy, cable insulation can be selected individually for the respective application.

AATEX, IECEx, EAC Ex versionsCertyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

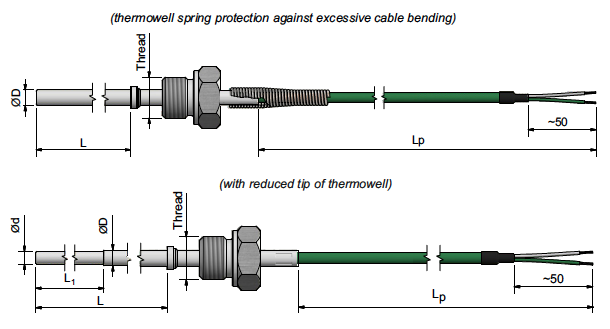

Other versions


This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
