TTE421, Cable thermocouple


Applications

  • * Measuring range: -40 .. +600°C (depends on cable insulation)
  • * Machinery industry
  • * General industrial services


Features

  • * Single TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)


Temperature range

  • Temperature range of the sensor depends on insulation of connection cable.
Temperature range Cable insulation
-40 .. +260°C teflon® PFA
-40 .. +400/600°C fiberglass


Available thermocouple cables

Designation Max temperature Cross section Outside dimensions
TT +260ºC

2 x 0.13 mm (wire)
2 x 0.20 mm (wire)
2 x 0.22 mm2 (string)

 0.6 x 1.0 mm
1.3 x 2.0 mm
1.5 x 2.8 mm
GLGL +400ºC 2 x 0.20 mm (wire)
2 x 0.50 mm (wire)		 0.9 x 1.4 mm
1.3 x 2.1 mm
GHGH +600ºC 2 x 0.50 mm (wire)
2 x 1.00 mm (wire)		 1.5 x 2.4 mm
1.8 x 3.1 mm
GLP +400ºC 2 x 0.22 mm2 (string) Ø2.6 mm


Description

Thermocouples TTE421 are designed for assembling directly onto machine parts or other construction elements. Copper plate allows to weld or glue a sensor to machine body or part.

The sensor consists of thermocouple cable and copper plate.

Thermocouple type, accuracy, cable length and insulation can be selected individually for the respective application.

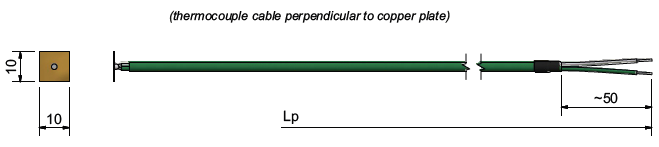

Other versions


This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
