Thermocouples (TCs)
Sensors with thermocouple cable




TTE500, Cable thermocouple


Applications

  • * Measuring range: -40 .. +200°C
  • * Machinery industry
  • * General industrial services


Features

  • * Single TC:
    Type J (Fe-CuNi),
    Type K (NiCr-NiAl),
    Type N (NiCrSi-NiSi),
    Type T (Cu-CuNi),
    Type E (NiCr-CuNi)
  • * For sticking with self-adhesive tape


Temperature range

  • Temperature range -50 .. +200°C


Available thermocouple cables

Designation Cross-section Outside dimensions
TW 2 x 0.20 mm (wire)
2 x 0.50 mm (wire)		 Ø0.5 mm
Ø0.9 mm
TT

2 x 0.13 mm (wire)
2 x 0.20 mm (wire)
2 x 0.22 mm2 (stranded)

 0.6 x 1.0 mm
1.3 x 2.0 mm
1.5 x 2.8 mm

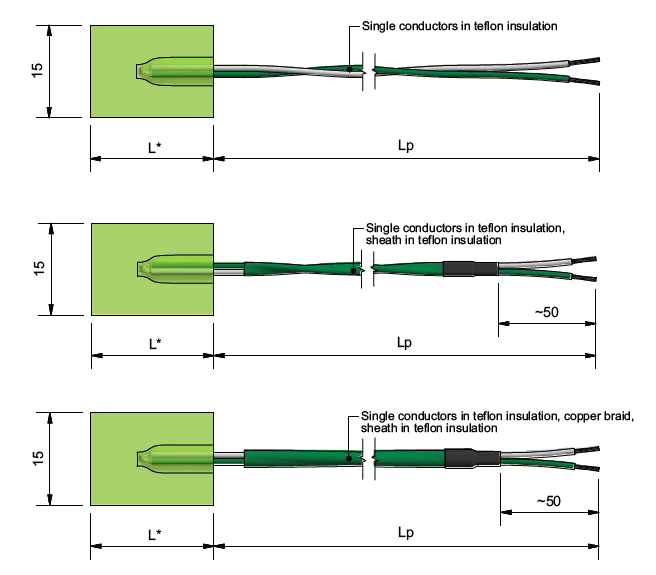

Construction

Thermocouples TTE500 are designed for surface temperature measurement. The sensor consists of self-adhesive teflon® tape and thermocouple cable

Type of thermocouple, length, accuracy, cable insulation can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, IECEx, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

Other versions

This data sheet contains only small part of our supplies program of cable thermocouples. Upon the customer's request, other versions can also be delivered.
