Thermocouples (TCs)
Sensors with connection head




TT..T / APTT..T, Thermocouple (TC) with exchangeable measuring insert


Applications

  • * Measuring range: -40 .. +800°C
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry

Features

  • * Protection tube diameter: Ø6÷Ø15 mm
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Spring-loaded measuring insert provides ideal contact with protective tube
  • * Temperature transmitter can be installed inside connection head of sensor
  • * Connection head with local LCD or LED display as an option (see models TWR01H, DANWdie-LED)


Description

Thermocouples of this series are designed for fitting into vessels and pipelines. Standard flanges to DIN EN or ASME are available. These temperature probes are suitable for fluid and gaseous media under moderate mechanical load.

Construction

The sensor consists of an exchangeable measuring insert, outer protective tube (thermowell) with neck and aluminum connection head where mounting a temperature transmitter with 4-20 mA/HART® or Profibus®PA output signal is possible.

The measuring insert represents the replaceable element of the complete sensor which reduces time and costs of maintenance of the measuring apparatus installed in the object. Spring fixation of the measuring insert provides perfect pressure to the bottom of the protecting tube, reduces time of reaction to changes of temperature and increases accuracy of measurement as well as reduces natural vibration thus mechanical and electrical defects can be avoided.

Insertion length, process connection, design of thermowell, connection head as well as type and number of sensors, accuracy and method of connection can be selected individually for the respective application.

Temperature transmitter ( Option )

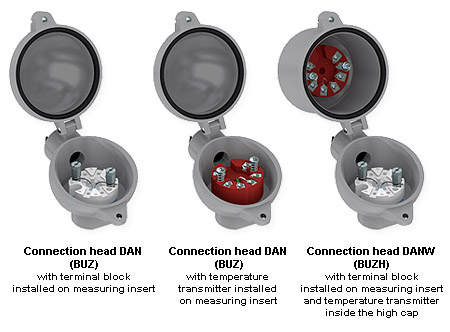

Transmitter is mounted inside the connection head of the sensor: directly on measuring inset or in the high cap of head.


The second method is advantageous as it allows changing standard measuring inset quickly without a need to disassemble the transmitter; it means reduction of time and costs of maintenance of the sensor and protecting wires against any damage possible. Mounting of two transmitters inside the connection head available upon request.

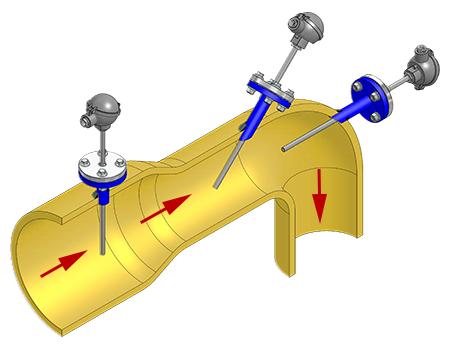

Example of sensor installation

Example of sensor installation

ATEX, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe and Flameproof designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ and „flameproof” type of protection according to Directive 2014/34/UE (ATEX) and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).


Other versions

This data sheet contains only small part of our supplies program of resistance thermometers with exchangeable measuring insert. Upon the customer's request, other versions can also be delivered.
