Thermocouples (TCs)
Sensors with connection head




TT438, TT440, TT441, TT442, TT443, TT444, Thermocouple (TC) with exchangeable measuring insert


Applications

  • * Measuring range: 0 .. +1800°C
  • * Blast furnaces, regenerating air heaters
  • * Industrial heating installations, heat generation
  • * Glass / porcelain / ceramics industry
  • * Cement and brick production

Features

  • * Standard protection tube material: Ceramic C799 ( 99.7% Al2O3 )
  • * Temperature transmitter can be installed inside connection head of sensor
  • * Gastight process connection


Description

The sensor consists of an exchangeable measuring insert, outer ceramic protective tube and aluminum connection head where mounting a temperature transmitter with 4-20 mA/HART® or Profibus®PA output signal is possible.

The measuring insert that is used makes an exchangeable part of the sensor which means that only the insert and not the whole sensor has to be disassembled in case of damage or for the purpose of periodical checking. Costs of the maintenance are reduced then.

Thermocouple length, diameter of ceramic tube, connection head as well as type and number of sensors, accuracy and method of connection can be selected individually for the respective application.

Temperature transmitter ( Option )

Transmitter is mounted inside the connection head of the sensor: directly on measuring inset or in the high cap of head.



The second method is advantageous as it allows changing standard measuring inset quickly without a need to disassemble the transmitter; it means reduction of time and costs of maintenance of the sensor and protecting wires against any damage possible. Mounting of two transmitters inside the connection head available upon request.

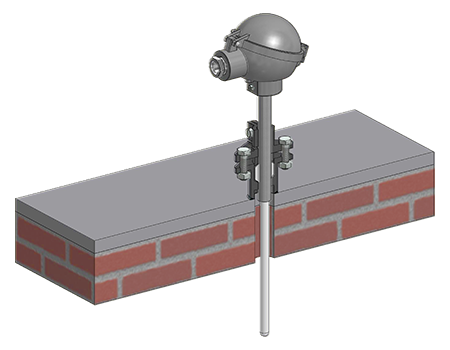

Example of sensor installation

Example of sensor installation

ATEX, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe and Flameproof designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ and „flameproof” type of protection according to Directive 2014/34/UE (ATEX) and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).


Other versions

This data sheet contains only small part of our supplies program of resistance thermometers with exchangeable measuring insert. Upon the customer's request, other versions can also be delivered.
