Thermocouples (TCs)
Sensors with connection head




W2.. / APW2.., Measuring insert (TC)



Applications

  • * Measuring range: -40 .. +1150°C
  • * Exchangeable measuring insert for thermocouple sensors

Features

  • * Made of mineral insulated cable (vibration proof)
  • * Standard sheath material: INCONEL® 600
  • * Spring-loaded measuring insert provides ideal contact with protective tube

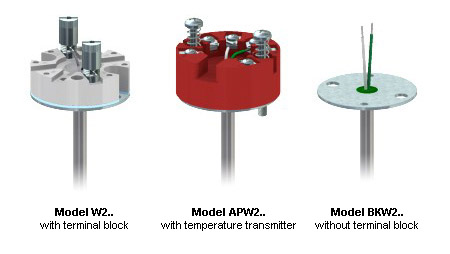

  • * Temperature transmitter can be installed instead of termional block

Description

The measuring inserts for thermocouples described here are designed for installation in a protection assembly. Operation without thermowell is only recommended in certain applications. These measuring inserts are made from flexible, mineral insulated sheathed cable. Apart from being flexible this model has outstanding resistance to vibration.

Screwed-in nut placed on ceramic block provides comfortable connection with connecting cable.

This model is spring loaded to ensure that the measuring insert is firmly pressed down on the thermowell bottom, which provides:
  • * quick response time,
  • * length compensation ( +/- 10 mm ),
  • * decrease of vibrations inside the thermowell

Temperature transmitter ( Option )

Temperature transmitter with signal output 4-20mA or 0-10V is mounted directly on measuring inset instead of terminal block.


ATEX, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe and Flameproof designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ and „flameproof” type of protection according to Directive 2014/34/UE (ATEX) and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

Other versions

This data sheet contains only small part of our supplies program of resistance thermometers with exchangeable measuring insert. Upon the customer's request, other versions can also be delivered.
