* TOPE600 sensor dimensions (measuring insert): 2.5 x 10 x 80 mm (thickness x width x length)
* Wide range of designs
* Temperature class F (+155°C), H (+180°C)
* Non-standard parameters available upon request: - non-standard dimensions/shapes - side cable exit - cables according to the customer's specifications - housing painted with conductive varnish
* Dielectrical strength 2.5 kVAC/60 sec., optionally 5.0 kVAC/60 sec.
Measuring range
-20 .. +155°C (temperature class F) -20 .. +180°C (temperature class H)
Description
Insert these thin, laminated RTDs in winding slots to detect high temperatures before insulation damage occurs. Six sensors are recommended for each motor, two per phase. Locate sensors near the hottest point of the windings for best performance.

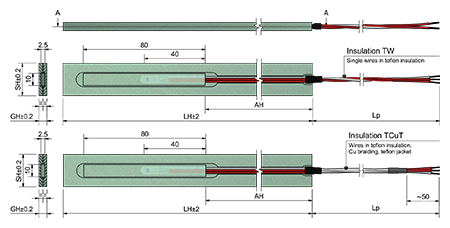

RTD (Stator Slot RTD) of TOPE601 series is installed and coated in additional housing, consisting of two parts (lower and upper). With the additional housing, complete thermometer can be precisely adapted to the dimensions of the generator groove.
Dimensions of the housing, length and insulation of the connecting cable, may be selected depending on the application needs/requirements
Other versions
Above mentioned data presents only small part of our supplies program of stator temperature sensors. Upon the customer's request, other versions can also be delivered.
