Resistance Thermometers (RTDs)
Ambient temperature sensors




TOPZR / APTOPZR, Resistance thermometer


Application

  • * Measuring range: -40 .. +85°C
  • * Temperature measurement of pipelines
  • * Heating and air-conditioning installations

Features

  • * Connection line 2-, 3-, 4-wire
  • * Single RTD:
       Pt100, Pt500, Pt1000 (IEC751),
       Ni100, Ni500, Ni1000 (DIN43760),
       Cu50, Cu100 (GOST 6651-2009)
  • * Esthethic housing made out of plastic or aluminum (light grey color)
  • * IP65 protection degree
  • * Radiator material: brass

Description

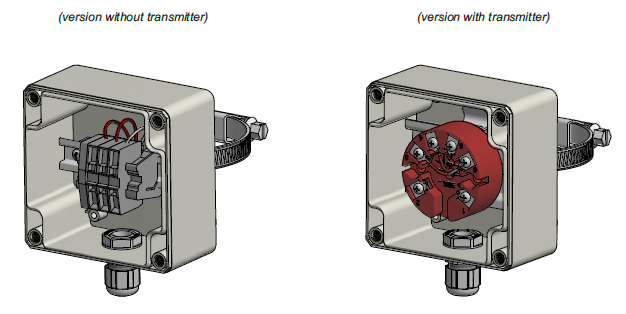

Resistance thermometers TOPZR / APTOPZR are designed for temperature measurement of pipelines. There is possibility of assembling programmable temperature transmitter with 4-20 mA output signal into TOPZ housing.

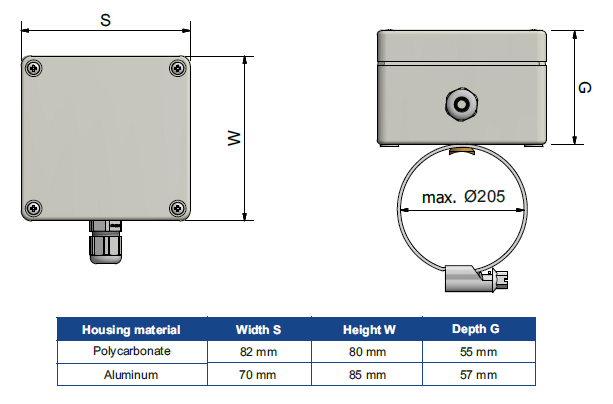

TOPZR consists of thermometric resistor, radiator made out of brass, hose-clip and esthethic housing made out of plastic or aluminum.

Hose-clip length, accuracy can be selected individually for the respective application.

Other versions


This data sheet contains only small part of our supplies program of resistance thermometers. Upon the customer's request, other versions can also be delivered.
