Resistance Thermometers (RTDs)
Sensors with connection cable




TOPE50244P, Cable resistance thermometer


Applications

  • * Measuring range: -50 .. +400°C (depends on cable insulation)
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry

Features

  • * Single RTD:
    Pt100, Pt500, Pt1000 according to PN-EN 60751
    Ni100, Ni1000 according to DIN 43760
    Cu50, Cu53 according to GOST 6651-94
  • * Hose-clip made of nickel-plated steel

Temperature range

Temperature range of the sensor depends on insulation of connection cable

Temperature range Cable insulation
-10 .. +105°C PVC
-50 .. +180°C silicone
-50 .. +260°C teflon® PFA
-50 .. +400°C fiberglass


Description

Resistance thermometers of this series are designed for mounting on pipelines and other cylindrical emenets.

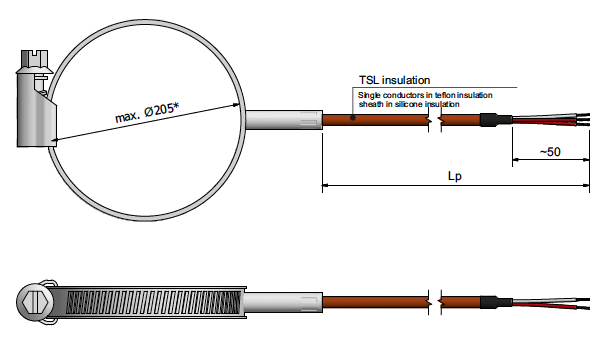

Construction

The sensor consists of thermometric resistor, protection tube with worm drive hose and cable.



Number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

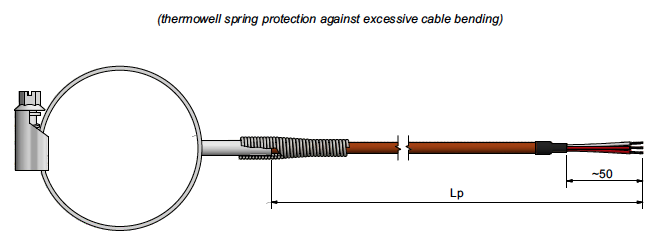

Other versions





This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
