* Measuring range: -50 .. +400°C (depends on cable insulation)
* Fine chemical industry
* Light energy industry
* General industrial services
Features
* Single or double RTD: Pt100, Pt500, Pt1000 according to PN-EN 60751 Ni100, Ni1000 according to DIN 43760 Cu50, Cu53 according to GOST 6651-94
* Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
* Thermowell with thread M20x1.5, G1/2” or other(TOPE4)
Temperature range
Temperature range of the sensor depends on insulation of connection cable.
Temperature range
Possible diameters of protection tube
Cable insulation
-10 .. +105°C
Ø8, Ø9, Ø10 mm
PVC
-50 .. +180°C
Ø8, Ø9, Ø10 mm
silicone
-50 .. +260°C
Ø5, Ø6, Ø8, Ø9, Ø10 mm
teflon® PFA
-50 .. +400°C
Ø8, Ø9, Ø10 mm
fiberglass
Description
Resistance thermometers of this series are designed for screw-fitting directly into the process, mainly in vessels and pipelines. These thermometers are suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.

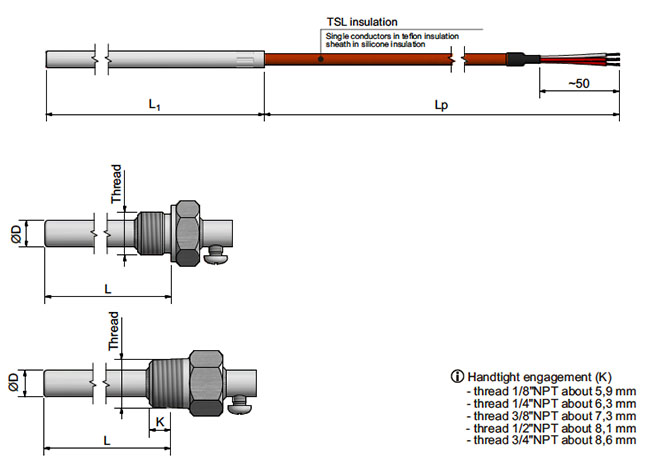

Construction
The sensor consists of thermometric resistor, protection tube and external thermowell with threaded process connection. Additional external thermowell allows for easy sensor disassembly without unsealing process installation.
Insertion length, process connection, number of sensors, accuracy, cable insulation can be selected individually for the respective application.
Other versions
This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
