* Measuring range: -50 .. +400°C (depends on cable insulation)
* Fine chemical industry
* Light energy industry
* General industrial services
Features
* Single or double RTD: Pt100, Pt500, Pt1000 according to PN-EN 60751 Ni100, Ni1000 according to DIN 43760 Cu50, Cu53 according to GOST 6651-94
* Stainless Steel AISI321 / 1.4541
* Version with additional thermowell (TOPE3) or without thermowell (TOPE4)
Temperature range
Temperature range of the sensor depends on insulation of connection cable.
Temperature range
Cable insulation
-10 .. +105°C
PVC
-50 .. +180°C
silicone
-50 .. +260°C
teflon® PFA
-50 .. +400°C
fiberglass
Description
Resistance thermometers TOPE3, TOPE4 are designed for screw-fitting directly into process or into machine parts. Adjustable spring force of sensor provides optimum measurement conditions in environment where vibrations and turbulences appears. Additional external thermowell of TOPE3 version allows for easy sensor disassembly without unsealing process installation. These thermometers are suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.

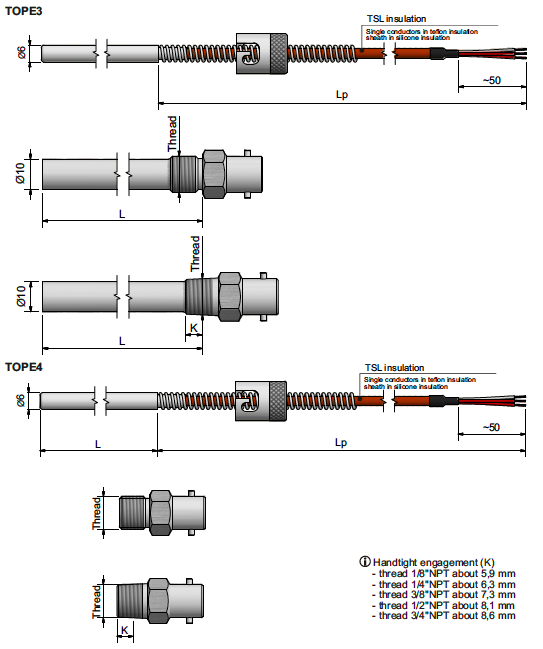

Construction
TOPE3 sensor consists of thermometric resistor, protection tube made out of stainless steel, connection cable, adjustable bayonet cap with spring and additional external thermowell with threaded process connection. TOPE4 sensor is provided with bayonet adaptor, without additional external thermowell.
Insertion length, process connection, construction type, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.
ATEX, IECEx, EAC Ex versions
Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).
Other versions
This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
