TOPE310, TOPE311, TOPE312, Cable resistance thermometer
|
|
|
Applications
- * Measuring range: -50 .. +400°C (depends on cable insulation)
- * Plastic industry
- * Light energy industry
- * General industrial services
Features
- * Single or double RTD:
Pt100, Pt500, Pt1000 according to PN-EN 60751 Ni100, Ni1000 according to DIN 43760 Cu50, Cu53 according to GOST 6651-94
- * Stainless Steel AISI321 / 1.4541
- * Version with protection tube diameter Ø5 mm (TOPE310), Ø6 mm (TOPE311), Ø8 mm (TOPE312)
Temperature rangeTemperature range of the sensor depends on insulation of connection cable.
Temperature range |
Possible diameters of protection tube |
Cable insulation |
-10 .. +105°C |
Ø6, Ø8 mm |
PVC |
-50 .. +180°C |
Ø6, Ø8 mm |
silicone |
-50 .. +260°C |
Ø5, Ø6, Ø8 mm |
teflon® PFA |
-50 .. +400°C |
Ø6, Ø8 mm |
fiberglass |
DescriptionResistance thermometers TOPE310, TOPE311, TOPE312 are designed for screw-fitting directly into machine body or parts. Adjustable spring force of sensor provides optimum measurement conditions in environment where vibrations appears

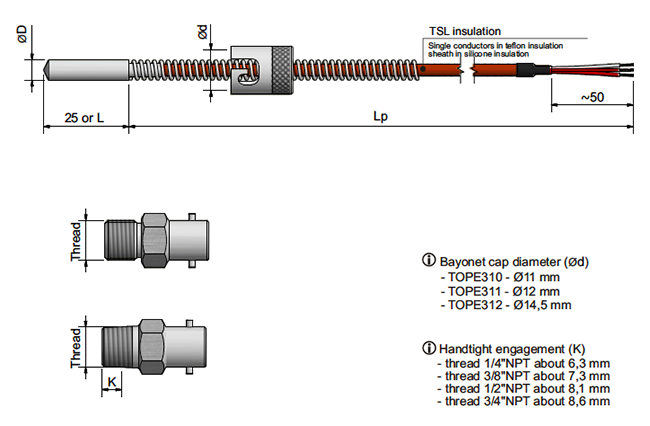

ConstructionTOPE310, TOPE311, TOPE312 sensor consists of thermometric resistor, protection tube made out of stainless steel, connection cable, adjustable bayonet cap with spring. Sensor can be additional equipped with bayonet adaptor
Insertion length, process connection, construction type, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.
ATEX, IECEx, EAC Ex versions Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).
Other versions This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
|
|
|
|
|
