Resistance Thermometers (RTDs)
Sensors with connection cable




TOPE409, TOPE410, Cable resistance thermometer


Applications

  • * Measuring range: -50 .. +400°C (depends on cable insulation)
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry

Features

  • * Single or double RTD:
        Pt100, Pt500, Pt1000 according to PN-EN 60751
        Ni100, Ni1000 according to DIN 43760
        Cu50, Cu53 according to GOST 6651-94
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Threaded process connection
  • * Construction type: straight or angle

Temperature range

Temperature range of the sensor depends on insulation of connection cable.
Temperature range Possible diameters of protection tube Cable insulation
-10 .. +105°C Ø5, Ø6, Ø8 mm PVC
-50 .. +180°C Ø5, Ø6, Ø8 mm silicone
-50 .. +260°C Ø3, Ø4, Ø5, Ø6, Ø8 mm teflon® PFA
-50 .. +400°C Ø5, Ø6, Ø8 mm fiberglass

Description

Resistance thermometers of this series are designed for screw-fitting directly into the process, mainly in vessels and pipelines. These thermometers are suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.

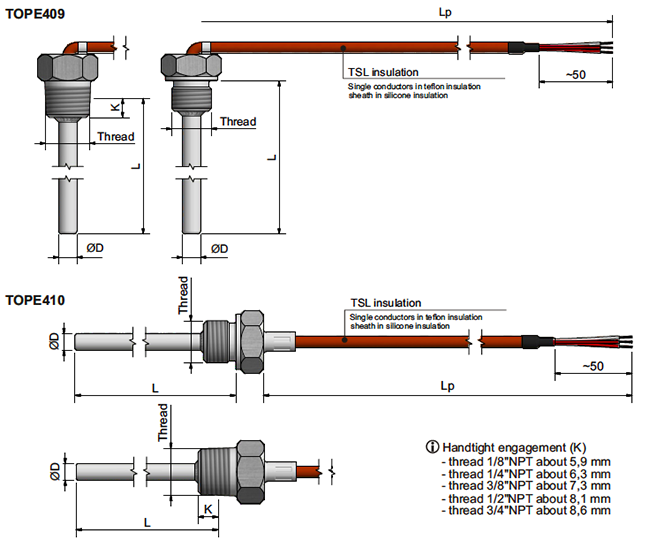

Construction

TOPE409, TOPE410 sensor consists of thermometric resistor, protection tube made out of stainless steel, threaded process connection welded to thermowell and connection cable


Insertion length, process connection, construction type, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

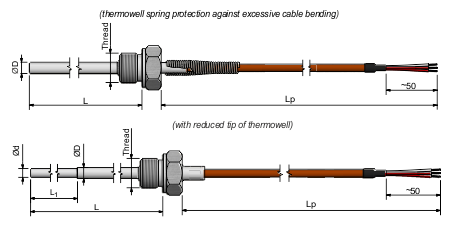

Other versions


This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
