Resistance Thermometers (RTDs)
Sensors with connection cable




TOPE411, TOPE412, Cable resistance thermometer



Applications

  • * Measuring range: -50 .. +400°C (depends on cable insulation)
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry

Features

  • * Single or double RTD
  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • * Construction type: straight or angle

Temperature range

Temperature range of the sensor depends on insulation of connection cable.
Temperature range Possible diameters of protection tube Cable insulation
-10 .. +105°C Ø5, Ø6, Ø8 mm PVC
-50 .. +180°C Ø5, Ø6, Ø8 mm silicone
-50 .. +260°C Ø3, Ø4, Ø5, Ø6, Ø8 mm teflon® PFA
-50 .. +400°C Ø5, Ø6, Ø8 mm fiberglass

Description

Resistance thermometers of this series are designed for push-in fitting directly into the process. These thermometers are suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.

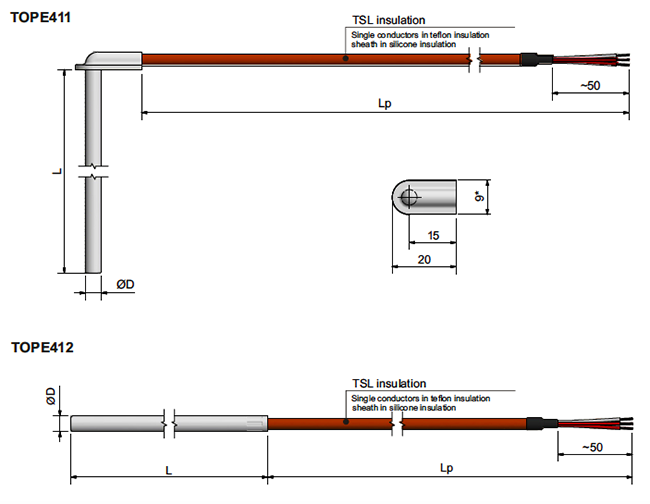

Construction

The sensor consists of thermometric resistor, protection tube and cable.


Protection tube length, construction type, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

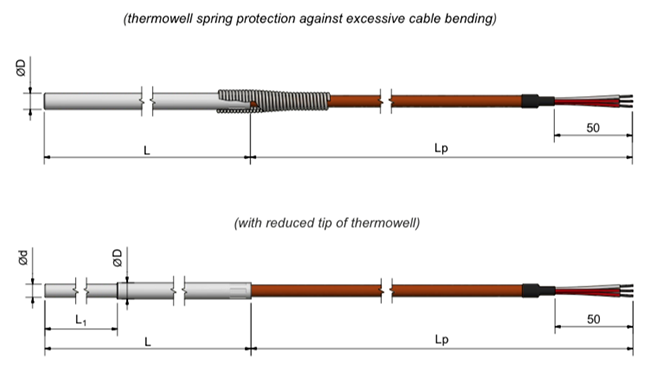

Other versions


This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
