* Measuring range: -50 .. +400°C (depends on cable insulation)
* Fine chemical industry
* Light energy industry
* General industrial services
* Food industry
Features
* Single or double RTD: Pt100, Pt500, Pt1000 according to PN-EN 60751 Ni100, Ni1000 according to DIN 43760 Cu50, Cu53 according to GOST 6651-94
* Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
* Threaded process connection
Temperature range
Temperature range of the sensor depends on insulation of connection cable.
Temperature range
Cable insulation
-10 .. +105°C
PVC
-50 .. +180°C
silicone
-50 .. +260°C
teflon® PFA
-50 .. +400°C
fiberglass
Description
Resistance thermometers of this series are designed for screw-fitting directly into the process, mainly in vessels and pipelines. These thermometers are suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.
Construction

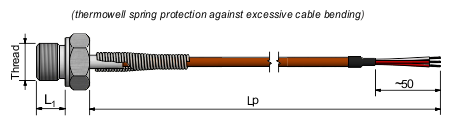

The sensor consists of thermometric resistor, threaded process connection and cable.
Insertion length, process connection, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.
ATEX, IECEx, EAC Ex versions
Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).
Other versions
This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
