* Measuring range: -50 .. +400°C (depends on cable insulation)
* Machinery industry
* Light energy industry
* General industrial services
Features
* Single or double RTD: Pt100, Pt500, Pt1000 according to PN-EN 60751 Ni100, Ni1000 according to DIN 43760 Cu50, Cu53 according to GOST 6651-94
* Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
* Standard hole diameters Ø4.2 and Ø6.2 mm
Temperature range
Temperature range of the sensor depends on insulation of connection cable.
Temperature range
Cable insulation
-10 .. +105°C
PVC
-50 .. +180°C
silicone
-50 .. +260°C
teflon® PFA
-50 .. +400°C
fiberglass

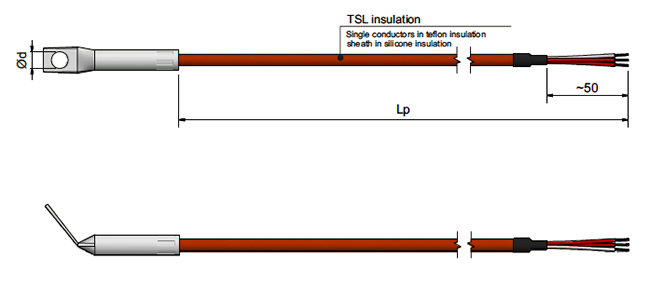

Construction
Resistance thermometers TOPE416 are designed for assembling directly on to machine parts or other construction elements. Assembly screw hole in thermwell allows to mount sensor with standard fasteners e.g. bolts and rivets.
The sensor consists of thermometric resistor, protection tube with hole for fixing and cable.
Diameter of hole, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application.
ATEX, IECEx, EAC Ex versions
Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).
Other versions
This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
