Resistance Thermometers (RTDs)
Sensors with connection cable




TOPE424, Cable resistance thermometer


Applications

  • * Temperature measurement of liquids, gases and solid bodies.
  • * Laboratories, warehouses
  • * Quality control


Features

  • * Single or double RTD:
    Pt100, Pt500, Pt1000 according to PN-EN 60751
    Ni100, Ni1000 according to DIN 43760
    Cu50, Cu53 according to GOST 6651-94
  • * Comfortable handgrip to handle
  • * Twisted or straight cable version


Temperature range

Temperature range: -200 .. +600°C (depends on thermometric sensor type)

Description

Resistance thermometers TOPE424 are designed for temporary measurement and mobility. Recommended for laboratory application to dryblock temperature calibrators.

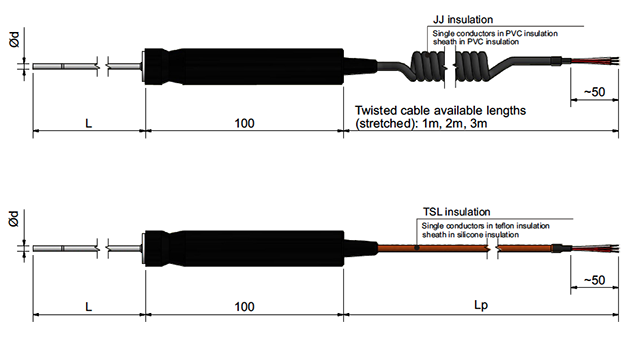

TOPE424 consists of thermometric resistor, sheathed cable mineral insulated inside, handgrip and twisted or straight connection cable version.

Available lenght of stretched twisted cable:
  • * 1m
  • * 2m
  • * 3m

Protection tube length, number of sensors, accuracy, cable insulation and method of connection can be selected individually for the respective application

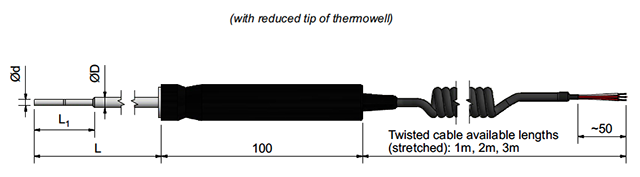

Other versions


This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered
