Resistance Thermometers (RTDs)
Sensors with connection cable




Data sheet TOPE50244, Edition 2017 (PL)


Applications

  • * Measuring range: -50 .. +260°C
  • * Machinery industry
  • * General industrial services

Features

  • * Single RTD:
    Pt100, Pt500, Pt1000 according to PN-EN 60751
    Ni100, Ni1000 according to DIN 43760
  • * Self-advesive teflon® tape

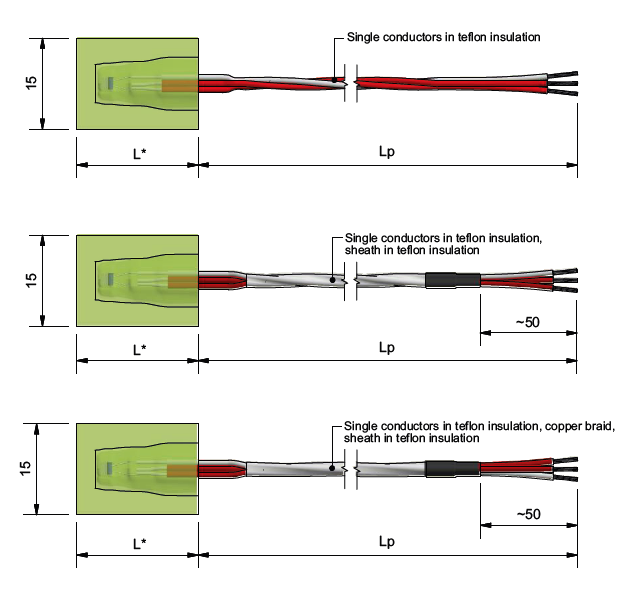

Construction

Resistance thermometers TOPE500 are designed for surface temperature measurement. The sensor consists of thermometric resistor, teflon® self-advesive tape and cable.


Number of sensors, length, accuracy, cable insulation and method of connection can be selected individually for the respective application.

ATEX, IECEx, EAC Ex versions Certyfikaty ATEX, EAC Ex

Intrinsically safe designs are available for applications in hazardous areas. These models are provided with certificate for „intrinsically safe“ type of protection according to Directive 2014/34/UE (ATEX), IECEx scheme and EAC Ex TR-CU 012/2011 (Eurasian Economic Union).

Other versions

This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
Documents
