Resistance Thermometers (RTDs)
Sensors with connection cable




TOPE501, Cable resistance thermometer



Applications

  • * Measuring range: -50 .. +260°C
  • * Machinery industry
  • * General industrial services

Features

  • * Single RTD:
    Pt100, Pt500, Pt1000 according to PN-EN 60751
    Ni100, Ni1000 according to DIN 43760
  • * Teflon® shrink-tube as insulation material

Construction

The sensor consists of Pt100 thermometric resistor (or other according to request), silicone case, self-advesive tape and cable.

Length, accuracy, cable insulation and method of connection can be selected individually for the respective application.

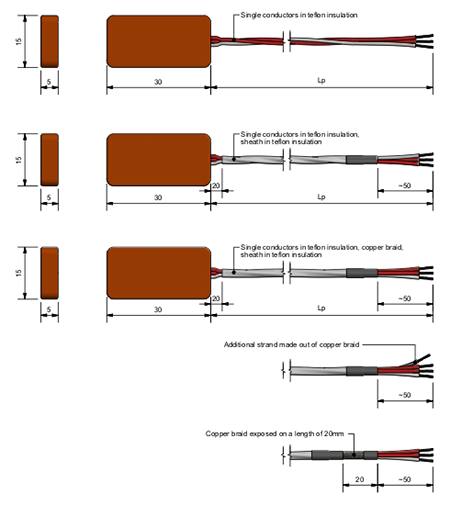

Designs


Temperature transmitter (Option)

There is possibility of using standard temperature transmitter (4÷20mA, 0÷10V) or temperature transmitter with HART®, Profibus® PA, Foundation Fieldbus communication protocol, mounted inside electrical control cabinet.

Other versions

thermometers. Upon the customer's request, other versions can also be delivered.
