Resistance Thermometers (RTDs)
Sensors with connection cable




TOPE610, Cable resistance thermometer


Applications

  • * Measuring range: -50 .. +260°C
  • * Machinery industry
  • * General industrial services

Features

  • * Single RTD:
       Pt100, Pt500, Pt1000 according to PN-EN 60751
       Ni100, Ni1000 according to DIN 43760
  • * Teflon® shrink-tube as insulation material

Construction

Resistance thermometers TOPE610 are designed for temperature measurement of machine parts or other construction elements.

TOPE610 sensor consists of thermometric resistor and connection cable.



Sensor type, length, accuracy, cable insulation and method of connection can be selected individually for the respective application.

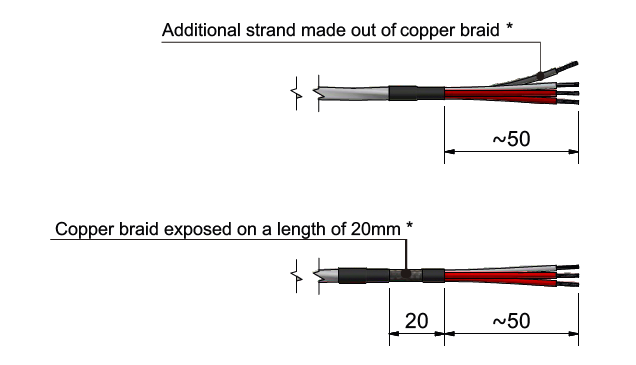

Other versions


This data sheet contains only small part of our supplies program of cable resistance thermometers. Upon the customer's request, other versions can also be delivered.
Documents
