* Spring-loaded measuring insert ensure reliablecontact with thermowell
* Non-standard sensor version available upon customer’s request - field mounted temperature transmitter iTEMP® TMT142 or iTEMP® TMT162
Description
Sensor consists of mineral insulated measuring insert and field mounted temperature transmitter PR7501.
Sheathed resistance thermometers are made of metal sheathed cable with internal wires (Cu or Ni) are insulated from each other and from the outer sheath with magnesium oxide (MgO) powder. This provides the sensor with high vibration resistance, flexibility as well as resistance to temperature and with good electrical insulation.
These sensors are designed for direct temperature measuring in places with difficult access, as well as in all places, where it is required to use flexible sensors of small diameters, high resistance to vibrations and shock, and with short response time to temperature changes.
Due to tight pressing of the insulating layer (MgO) and appropriate structure of the inner wires and the sheath, the sensors can be bent with a minimal radius of curvature of three times the outer diameter of the sheath.
Length and diameter of sensor can be selected individually for the respective application

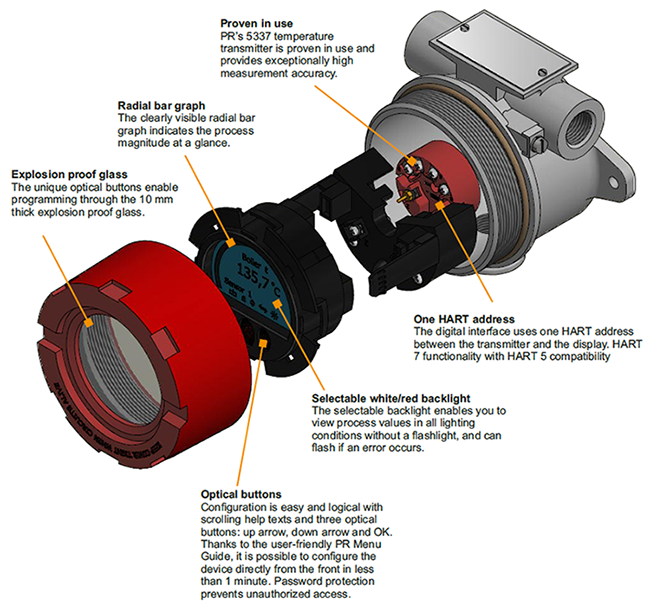

The details that make the difference
PR7501 field mounted HART® temperature transmitter with display and optical buttons allows to easy programming, review and diagnostics from the front of the sensor. Sensor display can be rotated in 90 degree increments for easy vertical or horizontal viewing
ATEX versions
Intrinsically safe and Flameproof designs will be available for applications in hazardous areas. These models will be provided with certificate for „intrinsically safe“ and „flameproof” type of protection according to Directive 2014/34/UE (ATEX).
Other versions
This data sheet contains only small part of our supplies program of resistance thermometers with field mounted transmitter. Upon the customer's request, other versions can also be delivered.
