Resistance Thermometers (RTDs)
Sensors with connection head




TOPGB-55 / APTOPGB-55, Resistance thermometer (RTD) with non-exchangeable measuring insert


Applications

  • * Measuring range: -50 .. +150°C
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry

Features

  • * Stainless Steel AISI321 / 1.4541 or AISI316L / 1.4404, AISI316Ti / 1.4571 upon request
  • *Temperature transmitter can be installed inside connection head of sensor (only form B)

Description

The sensor consists of non-exchangeable measuring insert, outer protective tube (thermowell) and aluminum connection head where mounting a temperature transmitter with 4-20 mA/HART® or Profibus®PA output signal is possible.

Non-exchangeable measuring insert is an alternative for more expensive solution used in TOPGB serie. Miniature connection head type MA reduces a size of complete sensor construction to make possible installation in confined areas.

Insertion length, process connection, design of thermowell, connection head as well as type and number of sensors, accuracy can be selected individually for the respective application

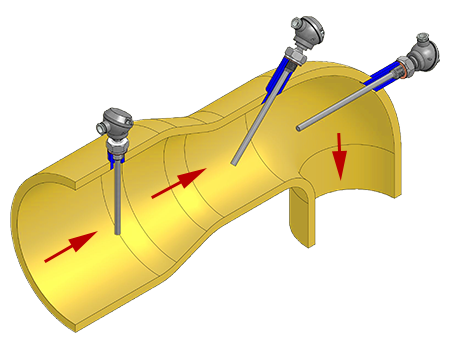

Example of sensor installation




Other versions

This data sheet contains only small part of our supplies program of resistance thermometers with non-exchangeable measuring insert. Upon the customer's request, other versions can also be delivered.
