Resistance Thermometers (RTDs)
Sensors with connection head




TOP-145, Resistance thermometer (RTD) with non-exchangeable measuring insert



Applications

  • * Measuring range: -50 .. +150°C
  • * Fine chemical industry
  • * Light energy industry
  • * General industrial services
  • * Food industry

Features

  • * Thermowell diameter: Ø8 mm
  • * Thermowell material: Stainless Steel AISI321 / 1.4541

Description

The sensor consists of non-exchangeable measuring insert, outer protective tube (thermowell) and aluminum connection head.

Insertion length, process connection, number of sensors, accuracy can be selected individually for the respective application.

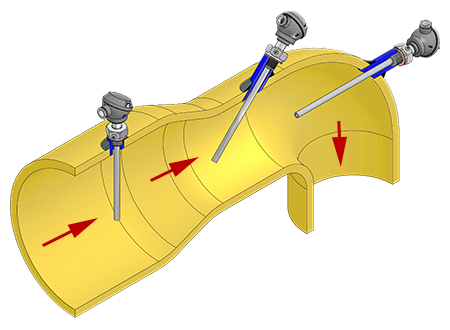

Example of sensor installation




Other versions

This data sheet contains only small part of our supplies program of resistance thermometers with non-exchangeable measuring insert. Upon the customer's request, other versions can also be delivered.
